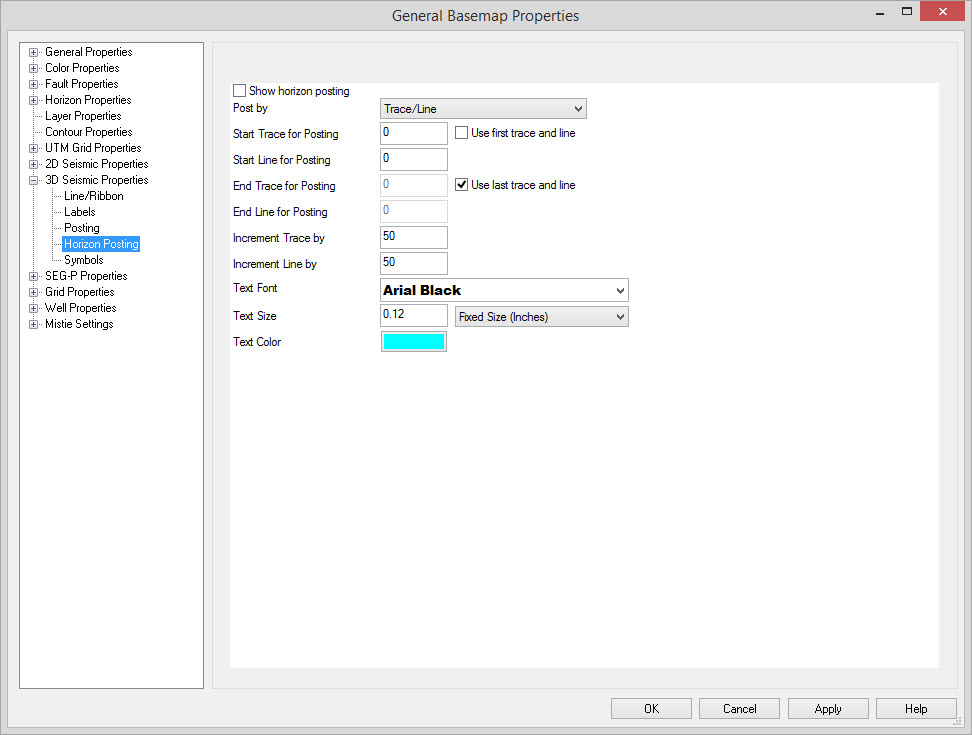

3D Seismic Properties: Horizon Posting
For any horizon displayed on 3D seismic lines, use this page to
configure the 3D horizon posting. To define the number of decimals used
in the posting, see the Colorbar/Histogram page.
Enable Posting
Show Horizon Posting: Toggle the defined
postings on and off.
Posting Parameters
Post By: Select
how the horizon is posted on
3D seismic lines. Trace/Line and Trace/Line Offset are the available
selections.
Start Trace for Posting, Start Line for Posting/End Trace for Posting, End Line for Posting/Increment Trace By, Increment Line By: The starting, ending, and increment posting values for the trace and line parts of a 3D survey. The value entered here should be appropriate to the selection in "Post By". Generally, using the first and last line/trace for posting is the best application for all lines. If using line-by-line properties, you can have values specific to that line.
Text Font, Text Size, Text Color: These define how the posting will appear. Select the font, specify the size, and select a color.
Start Trace for Posting, Start Line for Posting/End Trace for Posting, End Line for Posting/Increment Trace By, Increment Line By: The starting, ending, and increment posting values for the trace and line parts of a 3D survey. The value entered here should be appropriate to the selection in "Post By". Generally, using the first and last line/trace for posting is the best application for all lines. If using line-by-line properties, you can have values specific to that line.
Text Font, Text Size, Text Color: These define how the posting will appear. Select the font, specify the size, and select a color.
Note: Fixed sized object will remain the same regardless of the map scale. Variable sized objects will change size with the map scale.
